10.75 Lac - 25 Lac / piece
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Driven Type | Pneumatic |
| Automatic Grade | Fully Automatic |
| Power | 9-12kw |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details
Application
Bottle, Food, Water
Certification
ISO 9001:2008
Country of Origin
India
Product Size
30-500ml
Product Out Put
3300-4000BPH
Neck Dia
19-28mm
Heater Power
18KW
Heater Type
I.R Rotary
Clamping Stroke
150mm
Blowing Pressure
30-40 kg/cm
Air Consumption Machine
0.8 M/Min
Blowing
1.2 m/min
Operation
hydro-PNEU
Staff Required
2-3 Person
Area Required For machine
3.5 mtr x 3.5 mtr
For Utility
3mtr x 5mtr
Working Pressure
8-12 Kg/cm
Mould Cavity
4 Cavity
Specifications

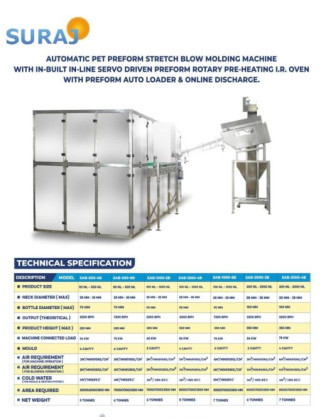

| Description Model | SAB-500-DS | SAB-1000-2B | Sab-2000-2B | SAB-5000-JB |
| Product Size | 30-500ml | 50-1000ml | 200-2000ml | 5000ml |
| Product Out Put | 3300-4000BPH | 1800-2000BPH | 1400-1600BPH | 600BPH |
| Mould Cavity | 4 Cavity | 2 Cavity | 2 Cavity | 1 Cavity/td> |
| Neck Dia | 19-28mm | 25-46mm | 28-83mm | 46-120mm |
| Heater Power | 18KW | 18KW | 24KW | 32KW |
| Heater Type | I.R Rotary | I.R Rotary | I.R Rotary | I.R Rotary |
| Clamping Stroke | 150mm | 150mm | 150mm | 200mm |
| Working Pressure | 8-12 Kg/cm | 8-12 Kg/cm | 8-12 Kg/cm | 8-12 Kg/cm |
| Blowing Pressure | 30-40 kg/cm | 30-40 kg/cm | 30-40 kg/cm | 30-40 kg/cm |
| Air Consumption Machine | 0.8 M/Min | 0.9 M/Min | 0.9 M/Min | 1.1 M/Min |
| Blowing | 1.2 m/min | 1.0 m/min | 1.0 m/min | 1.2 m/min |
| Operation | hydro-PNEU | hydro-PNEU | hydro-PNEU | hydro-PNEU |
| Staff Required | 2-3 Person | 2-3 Person | 2-3 Person | 2-3 Person |
| Area Required For machine | 3.5 mtr x 3.5 mtr | 4 mtr x 4 mtr | 4 mtr x 4 mtr | 5 mtr x 5 mtr |
| For Utility | 3mtr x 5mtr | 3mtr x 5mtr | 3mtr x 5mtr | 3mtr x 5mtr |
